Network.h File Reference

#include "ThreadSafeQueue.h"
#include "SharedPtr.h"
#include <stdlib.h>

Include dependency graph for Network.h:

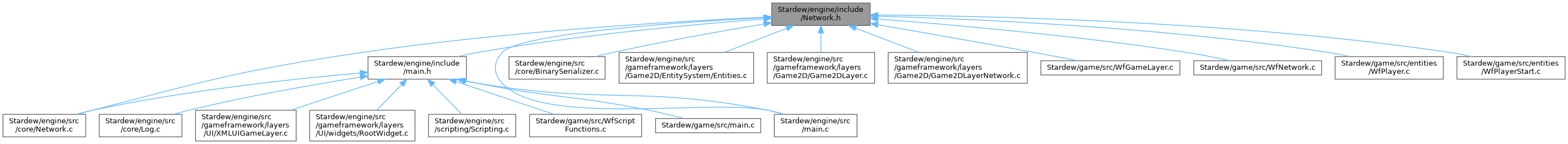

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	NetworkQueueItem
struct	NetworkConnectionEvent
struct	HostInfo

Enumerations
enum	NetworkConnectionEventType { NCE_ClientConnected , NCE_ClientDisconnected }
enum	GameRole { GR_Singleplayer , GR_Client , GR_ClientServer }

Functions
void	NW_Init ()
bool	NW_DequeueData (struct NetworkQueueItem *pOut)
bool	NW_DequeueConnectionEvent (struct NetworkConnectionEvent *pOut)
void	NW_EnqueueData (struct NetworkQueueItem *pIn)
enum GameRole	NW_GetRole ()

Detailed Description

• game can be started with command line args to configure it as a server or a client (or singleplayer)

if server or client is chosen a thread is spawned to recieve date too and from the socket

• it communicates with the game thread through 3 thread safe queues (named from the game threads perspective):
  • recieve data packets
  • transmit data packets
  • recieve connection events
• A UDP based custom protocol using the netcode library to handle connecting and disconnecting:
  • data can be sent reliably or unreliably
  • packets larget than NETCODE_MAX_PACKET_SIZE + (a small header) are transmitted as multiple packets and only presented to the game thread when the full message is assembled
  • reliable packets should only be recieved by recipients game thread once
    • they'll be continually resent until reciept is acknowledged

This layer of the networking code ensures the game thread can transmit and recieve reliable and unreliable packets of any size and is informed when a client connects or they as a client is connected to the server or disconnected.

For the time being the game thread must create a shared pointer of the packet to be sent which the server thread will then free. For data received through the queue the game thread must call free() on it when done.

Some better memory usage arrangement needs to be come up with at some point.

Enumeration Type Documentation

GameRole

enum GameRole

Enumerator
GR_Singleplayer
GR_Client
GR_ClientServer

NetworkConnectionEventType

enum NetworkConnectionEventType

Enumerator
NCE_ClientConnected
NCE_ClientDisconnected

Function Documentation

NW_DequeueConnectionEvent()

bool NW_DequeueConnectionEvent

(

struct NetworkConnectionEvent *

pOut

)

NW_DequeueData()

bool NW_DequeueData

(

struct NetworkQueueItem *

pOut

)

NW_EnqueueData()

void NW_EnqueueData

(

struct NetworkQueueItem *

pIn

)

NW_GetRole()

enum GameRole NW_GetRole

(

)

NW_Init()

void NW_Init

(

)
