Widget.c File Reference

#include "Widget.h"
#include <stdbool.h>
#include <string.h>
#include <stdlib.h>
#include "Scripting.h"
#include "AssertLib.h"
#include "DataNode.h"
#include "DrawContext.h"
#include "Log.h"

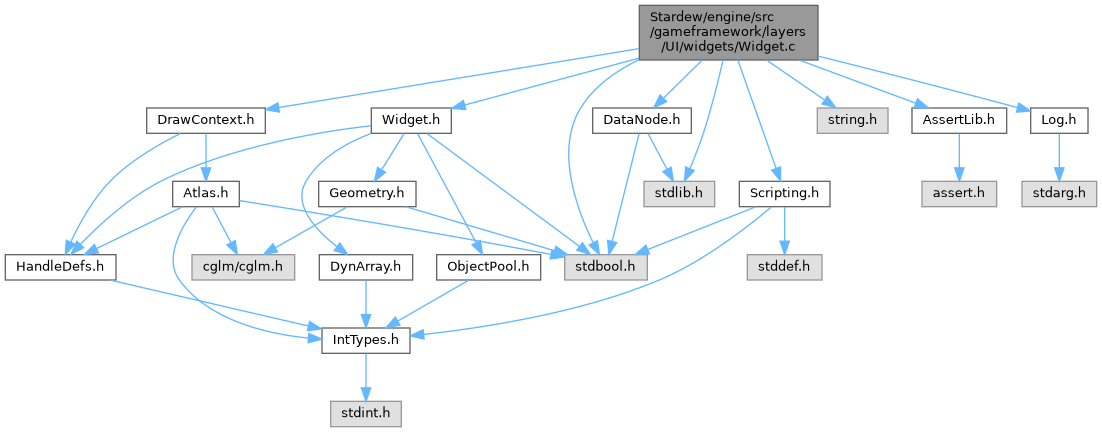

Include dependency graph for Widget.c:

Macros
#define	WIDGET_POOL_BOUNDS_CHECK(handle, rVal)   OBJ_POOL_BOUNDS_CHECK(handle, rVal, gWidgetPool)
#define	WIDGET_POOL_BOUNDS_CHECK_NO_RETURN(handle)   OBJ_POOL_BOUNDS_CHECK_NO_RETURN(handle, gWidgetPool)

Typedefs
typedef float(*	GetWorHFn) (struct UIWidget *pW)

Functions
	OBJECT_POOL (struct UIWidget)
HWidget	UI_NewBlankWidget ()
size_t	UI_CountWidgetChildrenPtr (struct UIWidget *pWidget)
size_t	UI_CountWidgetChildren (HWidget hWidget)
struct UIWidget *	UI_GetWidget (HWidget hWidget)
struct UIWidget *	UI_FirstChild (HWidget hWidget)
void	UI_AddChild (HWidget hParent, HWidget hChild)
void	UI_Init ()
HWidget	UI_GetScratchWiget ()
void	UI_DestroyWidget (HWidget widget)
void	UI_ParseWidgetDimsAttribute (const char *attributeContent, struct WidgetDim *outWidgetDims)
void	UI_ParseWidgetPaddingAttributes (struct DataNode *pInNode, struct WidgetPadding *outWidgetPadding)
void	UI_ParseHorizontalAlignementAttribute (const char *contents, enum WidgetHorizontalAlignment *outAlignment)
void	UI_ParseVerticalAlignementAttribute (const char *contents, enum WidgetVerticalAlignment *outAlignment)
struct WidgetDim *	GetWidgetWidthDim (struct UIWidget *pWidget)
struct WidgetDim *	GetWidgetHeightDim (struct UIWidget *pWidget)
float	GetWidgetW (struct UIWidget *pW)
float	GetWidgetH (struct UIWidget *pW)
struct UIWidget *	FindResolveableDimensionAncestor (struct UIWidget *pWidgetParent, WidgetDimGetterFn getter)
float	UI_ResolveWidthDimPxls (struct UIWidget *pWidget, const struct WidgetDim *dim)
float	UI_ResolveHeightDimPxls (struct UIWidget *pWidget, const struct WidgetDim *dim)
bool	UI_ParseWidgetDockPoint (struct DataNode *pInNode, struct UIWidget *outWidget)
void	UI_DefaultOnChildrenChanged (struct UIWidget *outWidget)
void	UI_WidgetCommonInit (struct DataNode *pInNode, struct UIWidget *outWidget)
	Init common attributes that all widgets can have.
void	UI_DebugPrintCommonWidgetInfo (const struct UIWidget *inWidget, PrintfFn pPrintfFn)
	print a text representation of the widget tree. Falls appart if a widget fails to implement its debug print hook correctly. Shit. DON'T USE
void *	UI_Helper_OnOutputVerts (struct UIWidget *pWidget, VECTOR(WidgetVertex) pOutVerts)
void	UI_Helper_OnLayoutChildren (struct UIWidget *pWidget, struct UIWidget *pParent)
void	UI_SendWidgetMouseEvent (struct UIWidget *pWidget, enum WidgetCallbackTypes type, struct WidgetMouseInfo *pMouseInfo)
	send a mouse event to the widget that will be handled either by either or both a lua function and a c function. If both the C function is called first
void	UI_GetWidgetSize (HWidget hWidget, float *pOutW, float *pOutH)
void	UI_GetWidgetPadding (HWidget hWidget, float *pOutPaddingTop, float *pOutPaddingBottom, float *pOutPaddingLeft, float *pOutPaddingRight)
void	UI_GetWidgetTopLeft (HWidget hWidget, float *pOutLeft, float *pOutTop)
	get top left BEFORE padding is applied (the raw top left)
void	UI_GetHitBox (GeomRect outRect, HWidget hWidget)
	Get the AABB of the widget, excluding padding.
bool	UI_IsAttributeStringABindingExpression (const char *attributeValue)
char *	UI_MakeBindingGetterFunctionName (const char *inBindingName)
	USER MUST FREE RETURNED PTR append Get_ to the start of the string.
char *	UI_MakeBindingSetterFunctionName (const char *inBindingName)
struct WidgetPropertyBinding *	UI_FindBinding (struct UIWidget *pWidget, const char *bindingName)
void	UI_AddStringPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, char **pOutData, int viewmodelTableIndex)
	Add a bound string property entry to the widget and initialise a value by calling the binding getter function.
void	UI_AddIntPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, int *pOutData, int viewmodelTableIndex)
void	UI_AddFloatPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, float *pOutData, int viewmodelTableIndex)

Macro Definition Documentation

WIDGET_POOL_BOUNDS_CHECK

#define WIDGET_POOL_BOUNDS_CHECK	(		handle,
			rVal
	)		OBJ_POOL_BOUNDS_CHECK(handle, rVal, gWidgetPool)

WIDGET_POOL_BOUNDS_CHECK_NO_RETURN

#define WIDGET_POOL_BOUNDS_CHECK_NO_RETURN

(

handle

)

OBJ_POOL_BOUNDS_CHECK_NO_RETURN(handle, gWidgetPool)

Typedef Documentation

GetWorHFn

typedef float(* GetWorHFn) (struct UIWidget *pW)

Function Documentation

FindResolveableDimensionAncestor()

struct UIWidget * FindResolveableDimensionAncestor	(	struct UIWidget *	pWidgetParent,
		WidgetDimGetterFn	getter
	)

GetWidgetH()

float GetWidgetH

(

struct UIWidget *

pW

)

GetWidgetHeightDim()

struct WidgetDim * GetWidgetHeightDim

(

struct UIWidget *

pWidget

)

GetWidgetW()

float GetWidgetW

(

struct UIWidget *

pW

)

GetWidgetWidthDim()

struct WidgetDim * GetWidgetWidthDim

(

struct UIWidget *

pWidget

)

OBJECT_POOL()

OBJECT_POOL

(

struct UIWidget

)

UI_AddChild()

void UI_AddChild	(	HWidget	hParent,
		HWidget	hChild
	)

UI_AddFloatPropertyBinding()

void UI_AddFloatPropertyBinding	(	struct UIWidget *	pWidget,
		char *	inBoundPropertyName,
		char *	inBindingExpression,
		float *	pOutData,
		int	viewmodelTableIndex
	)

UI_AddIntPropertyBinding()

void UI_AddIntPropertyBinding	(	struct UIWidget *	pWidget,
		char *	inBoundPropertyName,
		char *	inBindingExpression,
		int *	pOutData,
		int	viewmodelTableIndex
	)

UI_AddStringPropertyBinding()

void UI_AddStringPropertyBinding	(	struct UIWidget *	pWidget,
		char *	inBoundPropertyName,
		char *	inBindingExpression,
		char **	pOutData,
		int	viewmodelTableIndex
	)

Add a bound string property entry to the widget and initialise a value by calling the binding getter function.

Parameters

pWidget	theWidget to add the property binding. When the value changes the property of the widget will change when OnPropertyChanged is called. 2 way bindings will also be introduced for sliders, text entry fields, ect
inBoundPropertyName	bound property name - as it appears in the viewmodel lua table
inBindingExpression	the incoming binding expression, i.e. {spritename}
pOutData	the value returned from calling the lua string getter - allocates a string setting the pointer. user must deallocate
viewmodelTableIndex	the index in the lua registry that contains the lua table containing the function to call

UI_CountWidgetChildren()

size_t UI_CountWidgetChildren

(

HWidget

hWidget

)

UI_CountWidgetChildrenPtr()

size_t UI_CountWidgetChildrenPtr

(

struct UIWidget *

pWidget

)

UI_DebugPrintCommonWidgetInfo()

void UI_DebugPrintCommonWidgetInfo	(	const struct UIWidget *	inWidget,
		PrintfFn	pPrintfFn
	)

print a text representation of the widget tree. Falls appart if a widget fails to implement its debug print hook correctly. Shit. DON'T USE

Parameters

inWidget
pPrintfFn

UI_DefaultOnChildrenChanged()

void UI_DefaultOnChildrenChanged

(

struct UIWidget *

outWidget

)

UI_DestroyWidget()

void UI_DestroyWidget

(

HWidget

widget

)

UI_FindBinding()

struct WidgetPropertyBinding * UI_FindBinding	(	struct UIWidget *	pWidget,
		const char *	bindingName
	)

UI_FirstChild()

struct UIWidget * UI_FirstChild

(

HWidget

hWidget

)

UI_GetHitBox()

void UI_GetHitBox	(	GeomRect	outRect,
		HWidget	hWidget
	)

Get the AABB of the widget, excluding padding.

Parameters

outRect
hWidget

UI_GetScratchWiget()

HWidget UI_GetScratchWiget

(

)

UI_GetWidget()

struct UIWidget * UI_GetWidget

(

HWidget

hWidget

)

UI_GetWidgetPadding()

void UI_GetWidgetPadding	(	HWidget	hWidget,
		float *	pOutPaddingTop,
		float *	pOutPaddingBottom,
		float *	pOutPaddingLeft,
		float *	pOutPaddingRight
	)

UI_GetWidgetSize()

void UI_GetWidgetSize	(	HWidget	hWidget,
		float *	pOutW,
		float *	pOutH
	)

UI_GetWidgetTopLeft()

void UI_GetWidgetTopLeft	(	HWidget	hWidget,
		float *	pOutLeft,
		float *	pOutTop
	)

get top left BEFORE padding is applied (the raw top left)

Parameters

hWidget
pOutLeft
pOutTop

UI_Helper_OnLayoutChildren()

void UI_Helper_OnLayoutChildren	(	struct UIWidget *	pWidget,
		struct UIWidget *	pParent
	)

UI_Helper_OnOutputVerts()

void * UI_Helper_OnOutputVerts	(	struct UIWidget *	pWidget,
		VECTOR(WidgetVertex)	pOutVerts
	)

UI_Init()

void UI_Init

(

)

UI_IsAttributeStringABindingExpression()

bool UI_IsAttributeStringABindingExpression

(

const char *

attributeValue

)

Parameters

attributeValue

Returns

is the value of an xml attribute property an absolute value (return false) or is it deferrred to a getter on the lua viewmodel (return true). Special syntax for this is to surround the name of a view model property with "{" and "}"

UI_MakeBindingGetterFunctionName()

char * UI_MakeBindingGetterFunctionName

(

const char *

inBindingName

)

USER MUST FREE RETURNED PTR append Get_ to the start of the string.

Parameters

inBindingName

Returns

UI_MakeBindingSetterFunctionName()

char * UI_MakeBindingSetterFunctionName

(

const char *

inBindingName

)

UI_NewBlankWidget()

HWidget UI_NewBlankWidget

(

)

UI_ParseHorizontalAlignementAttribute()

void UI_ParseHorizontalAlignementAttribute	(	const char *	contents,
		enum WidgetHorizontalAlignment *	outAlignment
	)

UI_ParseVerticalAlignementAttribute()

void UI_ParseVerticalAlignementAttribute	(	const char *	contents,
		enum WidgetVerticalAlignment *	outAlignment
	)

UI_ParseWidgetDimsAttribute()

void UI_ParseWidgetDimsAttribute	(	const char *	attributeContent,
		struct WidgetDim *	outWidgetDims
	)

UI_ParseWidgetDockPoint()

bool UI_ParseWidgetDockPoint	(	struct DataNode *	pInNode,
		struct UIWidget *	outWidget
	)

UI_ParseWidgetPaddingAttributes()

void UI_ParseWidgetPaddingAttributes	(	struct DataNode *	pInNode,
		struct WidgetPadding *	outWidgetPadding
	)

UI_ResolveHeightDimPxls()

float UI_ResolveHeightDimPxls	(	struct UIWidget *	pWidget,
		const struct WidgetDim *	dim
	)

UI_ResolveWidthDimPxls()

float UI_ResolveWidthDimPxls	(	struct UIWidget *	pWidget,
		const struct WidgetDim *	dim
	)

UI_SendWidgetMouseEvent()

void UI_SendWidgetMouseEvent	(	struct UIWidget *	pWidget,
		enum WidgetCallbackTypes	type,
		struct WidgetMouseInfo *	pMouseInfo
	)

send a mouse event to the widget that will be handled either by either or both a lua function and a c function. If both the C function is called first

Parameters

pWidget
<br>
pMouseInfo	data about the event

UI_WidgetCommonInit()

void UI_WidgetCommonInit	(	struct DataNode *	pInNode,
		struct UIWidget *	outWidget
	)

Init common attributes that all widgets can have.

• "the base class constructor"

  Parameters

  pInNode
  outWidget
