Widget.h File Reference
#include "ObjectPool.h"
#include "HandleDefs.h"
#include <stdbool.h>
#include "DynArray.h"
#include "Geometry.h"

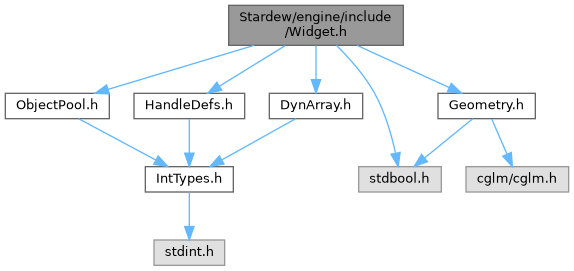

Include dependency graph for Widget.h:

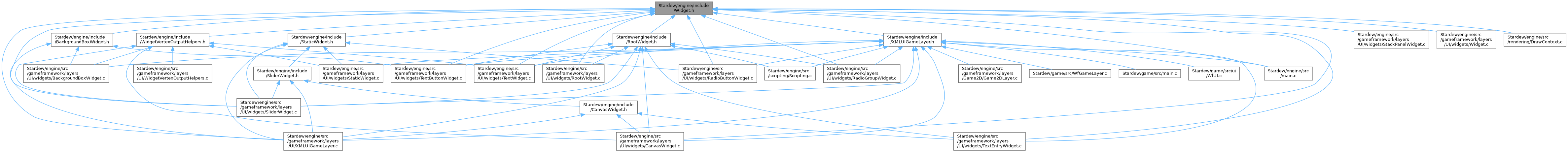

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  WidgetPadding

struct  WidgetScale

struct  WidgetDim

struct  LuaWidgetCallback

struct  CWidgetMouseCallback
 this isn't some "hungarian notation" shit - the name refers to widget callbacks defined as C functions! More...

struct  CWidgetCallbacks

struct  LuaWidgetCallbacks

struct  WidgetPropertyBinding

struct  WidgetMouseInfo

struct  UIWidget


Macros

#define LUA_CALLBACK_MAX_NAME_LEN   64

#define NUM_BUTTONS   3

#define MAX_PROPERTY_NAME_LEN   32

#define MAX_NUM_BINDINGS   16


Typedefs

typedef int(* PrintfFn) (const char *restrict fmt,...)

typedef struct Vert2DColourTexture WidgetVertex

typedef struct Vert2DColourTextureQuad WidgetQuad

typedef float(* GetUIWidgetDimensionFn) (struct UIWidget *pWidget, struct UIWidget *pParent)

typedef void(* LayoutChildrenFn) (struct UIWidget *pWidget, struct UIWidget *pParent)

typedef void(* OnDestroyWidgetFn) (struct UIWidget *pWidget)

typedef void *(* OutputWidgetVerticesFn) (struct UIWidget *pThisWidget, VECTOR(WidgetVertex) pOutVerts)

typedef void(* OnWidgetInitFn) (struct UIWidget *pWidget)

typedef void(* OnBoundPropertyChangedFn) (struct UIWidget *pThisWidget, struct WidgetPropertyBinding *pBinding)

typedef struct WidgetDim *(* WidgetDimGetterFn) (struct UIWidget *pWidget)

typedef void(* FocusedWidgetRecieveKeystrokeFn) (struct UIWidget *pWidget, int keystroke)

typedef void(* OnChildrenChangedFn) (struct UIWidget *pWidget)

typedef enum WidgetHorizontalAlignment WidgetHorizontalAlignment

typedef enum WidgetVerticalAlignment WidgetVerticalAlignment

typedef enum WidgetDockPoint WidgetDockPoint

typedef void(* WidgetMousePosCallbackFn) (struct UIWidget *pWidget, float x, float y)

typedef void(* WidgetMouseBtnCallbackFn) (struct UIWidget *pWidget, float x, float y, int btn)

typedef void(* WidgetFocusChangeCallbackFn) (struct UIWidget *pWidget)


Enumerations

enum  WidgetDimType {
  WD_Auto , WD_Stretch , WD_Pixels , WD_StretchFraction ,
  WD_Percentage
}
 some are relative to their parent. In which case these should be relative to THEIR parent, fixed, or the top level window. More...

enum  WidgetHorizontalAlignment { WHA_Left , WHA_Middle , WHA_Right }

enum  WidgetVerticalAlignment { WVA_Top , WVA_Middle , WVA_Bottom }

enum  WidgetDockPoint {
  WDP_TopLeft , WDP_TopMiddle , WDP_TopRight , WDP_MiddleRight ,
  WDP_BottomRight , WDP_BottomMiddle , WDP_BottomLeft , WDP_MiddleLeft ,
  WDP_Centre
}

enum  WidgetCallbackTypes {
  WC_OnMouseEnter , WC_OnMouseLeave , WC_OnMouseMove , WC_OnMouseDown ,
  WC_OnMouseUp , WC_OnGainFocus , WC_OnLeaveFocus , WC_NUM
}

enum  WidgetPropertyBindingType {
  WBT_Int , WBT_Float , WBT_String , WBT_Bool ,
  WBT_WidgetTree
}


Functions

struct WidgetDim * GetWidgetWidthDim (struct UIWidget *pWidget)

struct WidgetDim * GetWidgetHeightDim (struct UIWidget *pWidget)

void UI_Init ()

void UI_DestroyWidget (HWidget widget)

HWidget UI_GetScratchWiget ()

HWidget UI_NewBlankWidget ()

size_t UI_CountWidgetChildrenPtr (struct UIWidget *pWidget)

size_t UI_CountWidgetChildren (HWidget pWidget)

struct UIWidget * UI_GetWidget (HWidget hWidget)

struct UIWidget * UI_FirstChild (HWidget hWidget)

void UI_AddChild (HWidget hParent, HWidget hChild)

float UI_ResolveWidthDimPxls (struct UIWidget *pWidget, const struct WidgetDim *dim)

float UI_ResolveHeightDimPxls (struct UIWidget *pWidget, const struct WidgetDim *dim)

void UI_WidgetCommonInit (struct DataNode *pInNode, struct UIWidget *outWidget)
 Init common attributes that all widgets can have.

void UI_DebugPrintCommonWidgetInfo (const struct UIWidget *inWidget, PrintfFn pPrintfFn)
 print a text representation of the widget tree. Falls appart if a widget fails to implement its debug print hook correctly. Shit. DON'T USE

void * UI_Helper_OnOutputVerts (struct UIWidget *pWidget, VECTOR(WidgetVertex) pOutVerts)

void UI_Helper_OnLayoutChildren (struct UIWidget *pWidget, struct UIWidget *pParent)

void UI_GetWidgetSize (HWidget hWidget, float *pOutW, float *pOutH)

void UI_GetWidgetTopLeft (HWidget hWidget, float *pOutLeft, float *pOutTop)
 get top left BEFORE padding is applied (the raw top left)

void UI_GetWidgetPadding (HWidget hWidget, float *pOutPaddingTop, float *pOutPaddingBottom, float *pOutPaddingLeft, float *pOutPaddingRight)

void UI_SendWidgetMouseEvent (struct UIWidget *pWidget, enum WidgetCallbackTypes type, struct WidgetMouseInfo *pMouseInfo)
 send a mouse event to the widget that will be handled either by either or both a lua function and a c function. If both the C function is called first

void UI_GetHitBox (GeomRect outRect, HWidget hWidget)
 Get the AABB of the widget, excluding padding.

bool UI_IsAttributeStringABindingExpression (const char *attributeValue)

void UI_AddStringPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, char **pOutData, int viewmodelTableIndex)
 Add a bound string property entry to the widget and initialise a value by calling the binding getter function.

void UI_AddIntPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, int *pOutData, int viewmodelTableIndex)

void UI_AddFloatPropertyBinding (struct UIWidget *pWidget, char *inBoundPropertyName, char *inBindingExpression, float *pOutData, int viewmodelTableIndex)

char * UI_MakeBindingGetterFunctionName (const char *inBindingName)
 USER MUST FREE RETURNED PTR append Get_ to the start of the string.

char * UI_MakeBindingSetterFunctionName (const char *inBindingName)

struct WidgetPropertyBinding * UI_FindBinding (struct UIWidget *pWidget, const char *bindingName)

void UI_DefaultOnChildrenChanged (struct UIWidget *outWidget)


Macro Definition Documentation

◆ LUA_CALLBACK_MAX_NAME_LEN

#define LUA_CALLBACK_MAX_NAME_LEN   64

◆ MAX_NUM_BINDINGS

#define MAX_NUM_BINDINGS   16

◆ MAX_PROPERTY_NAME_LEN

#define MAX_PROPERTY_NAME_LEN   32

◆ NUM_BUTTONS

#define NUM_BUTTONS   3

Typedef Documentation

◆ FocusedWidgetRecieveKeystrokeFn

typedef void(* FocusedWidgetRecieveKeystrokeFn) (struct UIWidget *pWidget, int keystroke)

◆ GetUIWidgetDimensionFn

typedef float(* GetUIWidgetDimensionFn) (struct UIWidget *pWidget, struct UIWidget *pParent)

◆ LayoutChildrenFn

typedef void(* LayoutChildrenFn) (struct UIWidget *pWidget, struct UIWidget *pParent)

◆ OnBoundPropertyChangedFn

typedef void(* OnBoundPropertyChangedFn) (struct UIWidget *pThisWidget, struct WidgetPropertyBinding *pBinding)

◆ OnChildrenChangedFn

typedef void(* OnChildrenChangedFn) (struct UIWidget *pWidget)

◆ OnDestroyWidgetFn

typedef void(* OnDestroyWidgetFn) (struct UIWidget *pWidget)

◆ OnWidgetInitFn

typedef void(* OnWidgetInitFn) (struct UIWidget *pWidget)

◆ OutputWidgetVerticesFn

typedef void *(* OutputWidgetVerticesFn) (struct UIWidget *pThisWidget, VECTOR(WidgetVertex) pOutVerts)

◆ PrintfFn

typedef int(* PrintfFn) (const char *restrict fmt,...)

◆ WidgetDimGetterFn

typedef struct WidgetDim *(* WidgetDimGetterFn) (struct UIWidget *pWidget)

◆ WidgetDockPoint

typedef enum WidgetDockPoint WidgetDockPoint

◆ WidgetFocusChangeCallbackFn

typedef void(* WidgetFocusChangeCallbackFn) (struct UIWidget *pWidget)

◆ WidgetHorizontalAlignment

typedef enum WidgetHorizontalAlignment WidgetHorizontalAlignment

◆ WidgetMouseBtnCallbackFn

typedef void(* WidgetMouseBtnCallbackFn) (struct UIWidget *pWidget, float x, float y, int btn)

◆ WidgetMousePosCallbackFn

typedef void(* WidgetMousePosCallbackFn) (struct UIWidget *pWidget, float x, float y)

◆ WidgetQuad

typedef struct Vert2DColourTextureQuad WidgetQuad

◆ WidgetVertex

typedef struct Vert2DColourTexture WidgetVertex

◆ WidgetVerticalAlignment

typedef enum WidgetVerticalAlignment WidgetVerticalAlignment

Enumeration Type Documentation

◆ WidgetCallbackTypes

enum WidgetCallbackTypes
Enumerator
WC_OnMouseEnter
WC_OnMouseLeave
WC_OnMouseMove
WC_OnMouseDown
WC_OnMouseUp
WC_OnGainFocus
WC_OnLeaveFocus
WC_NUM

◆ WidgetDimType

enum WidgetDimType

some are relative to their parent. In which case these should be relative to THEIR parent, fixed, or the top level window.

Enumerator
WD_Auto

take as much space as it naturally takes

WD_Stretch

stretch to fill all available space

WD_Pixels

a literal value

WD_StretchFraction

a fraction that's relative with other children. meaning this: width: 1* ---—| width: 2* --------—| | a | b | ui element a is twice the width of ui element b, and together they take up the entirety of their parents width

WD_Percentage

a percentage of parents dimension but as a decimal between 0 and 1

◆ WidgetDockPoint

enum WidgetDockPoint
Enumerator
WDP_TopLeft
WDP_TopMiddle
WDP_TopRight
WDP_MiddleRight
WDP_BottomRight
WDP_BottomMiddle
WDP_BottomLeft
WDP_MiddleLeft
WDP_Centre

◆ WidgetHorizontalAlignment

enum WidgetHorizontalAlignment
Enumerator
WHA_Left
WHA_Middle
WHA_Right

◆ WidgetPropertyBindingType

enum WidgetPropertyBindingType
Enumerator
WBT_Int
WBT_Float
WBT_String
WBT_Bool
WBT_WidgetTree

◆ WidgetVerticalAlignment

enum WidgetVerticalAlignment
Enumerator
WVA_Top
WVA_Middle
WVA_Bottom

Function Documentation

◆ GetWidgetHeightDim()

struct WidgetDim * GetWidgetHeightDim ( struct UIWidget *  pWidget)

◆ GetWidgetWidthDim()

struct WidgetDim * GetWidgetWidthDim ( struct UIWidget *  pWidget)

◆ UI_AddChild()

void UI_AddChild ( HWidget  hParent,
HWidget  hChild
)

◆ UI_AddFloatPropertyBinding()

void UI_AddFloatPropertyBinding ( struct UIWidget *  pWidget,
char *  inBoundPropertyName,
char *  inBindingExpression,
float *  pOutData,
int  viewmodelTableIndex
)

◆ UI_AddIntPropertyBinding()

void UI_AddIntPropertyBinding ( struct UIWidget *  pWidget,
char *  inBoundPropertyName,
char *  inBindingExpression,
int *  pOutData,
int  viewmodelTableIndex
)

◆ UI_AddStringPropertyBinding()

void UI_AddStringPropertyBinding ( struct UIWidget *  pWidget,
char *  inBoundPropertyName,
char *  inBindingExpression,
char **  pOutData,
int  viewmodelTableIndex
)

Add a bound string property entry to the widget and initialise a value by calling the binding getter function.

Parameters
pWidgettheWidget to add the property binding. When the value changes the property of the widget will change when OnPropertyChanged is called. 2 way bindings will also be introduced for sliders, text entry fields, ect
inBoundPropertyNamebound property name - as it appears in the viewmodel lua table
inBindingExpressionthe incoming binding expression, i.e. {spritename}
pOutDatathe value returned from calling the lua string getter - allocates a string setting the pointer. user must deallocate
viewmodelTableIndexthe index in the lua registry that contains the lua table containing the function to call

◆ UI_CountWidgetChildren()

size_t UI_CountWidgetChildren ( HWidget  pWidget)

◆ UI_CountWidgetChildrenPtr()

size_t UI_CountWidgetChildrenPtr ( struct UIWidget *  pWidget)

◆ UI_DebugPrintCommonWidgetInfo()

void UI_DebugPrintCommonWidgetInfo ( const struct UIWidget *  inWidget,
PrintfFn  pPrintfFn
)

print a text representation of the widget tree. Falls appart if a widget fails to implement its debug print hook correctly. Shit. DON'T USE

Parameters
inWidget
pPrintfFn

◆ UI_DefaultOnChildrenChanged()

void UI_DefaultOnChildrenChanged ( struct UIWidget *  outWidget)

◆ UI_DestroyWidget()

void UI_DestroyWidget ( HWidget  widget)

◆ UI_FindBinding()

struct WidgetPropertyBinding * UI_FindBinding ( struct UIWidget *  pWidget,
const char *  bindingName
)

◆ UI_FirstChild()

struct UIWidget * UI_FirstChild ( HWidget  hWidget)

◆ UI_GetHitBox()

void UI_GetHitBox ( GeomRect  outRect,
HWidget  hWidget
)

Get the AABB of the widget, excluding padding.

Parameters
outRect
hWidget

◆ UI_GetScratchWiget()

HWidget UI_GetScratchWiget ( )

◆ UI_GetWidget()

struct UIWidget * UI_GetWidget ( HWidget  hWidget)

◆ UI_GetWidgetPadding()

void UI_GetWidgetPadding ( HWidget  hWidget,
float *  pOutPaddingTop,
float *  pOutPaddingBottom,
float *  pOutPaddingLeft,
float *  pOutPaddingRight
)

◆ UI_GetWidgetSize()

void UI_GetWidgetSize ( HWidget  hWidget,
float *  pOutW,
float *  pOutH
)

◆ UI_GetWidgetTopLeft()

void UI_GetWidgetTopLeft ( HWidget  hWidget,
float *  pOutLeft,
float *  pOutTop
)

get top left BEFORE padding is applied (the raw top left)

Parameters
hWidget
pOutLeft
pOutTop

◆ UI_Helper_OnLayoutChildren()

void UI_Helper_OnLayoutChildren ( struct UIWidget *  pWidget,
struct UIWidget *  pParent
)

◆ UI_Helper_OnOutputVerts()

void * UI_Helper_OnOutputVerts ( struct UIWidget *  pWidget,
VECTOR(WidgetVertex)  pOutVerts
)

◆ UI_Init()

void UI_Init ( )

◆ UI_IsAttributeStringABindingExpression()

bool UI_IsAttributeStringABindingExpression ( const char *  attributeValue)
Parameters
attributeValue
Returns
is the value of an xml attribute property an absolute value (return false) or is it deferrred to a getter on the lua viewmodel (return true). Special syntax for this is to surround the name of a view model property with "{" and "}"

◆ UI_MakeBindingGetterFunctionName()

char * UI_MakeBindingGetterFunctionName ( const char *  inBindingName)

USER MUST FREE RETURNED PTR append Get_ to the start of the string.

Parameters
inBindingName
Returns

◆ UI_MakeBindingSetterFunctionName()

char * UI_MakeBindingSetterFunctionName ( const char *  inBindingName)

◆ UI_NewBlankWidget()

HWidget UI_NewBlankWidget ( )

◆ UI_ResolveHeightDimPxls()

float UI_ResolveHeightDimPxls ( struct UIWidget *  pWidget,
const struct WidgetDim *  dim
)

◆ UI_ResolveWidthDimPxls()

float UI_ResolveWidthDimPxls ( struct UIWidget *  pWidget,
const struct WidgetDim *  dim
)

◆ UI_SendWidgetMouseEvent()

void UI_SendWidgetMouseEvent ( struct UIWidget *  pWidget,
enum WidgetCallbackTypes  type,
struct WidgetMouseInfo *  pMouseInfo
)

send a mouse event to the widget that will be handled either by either or both a lua function and a c function. If both the C function is called first

Parameters
pWidget
<br>
pMouseInfodata about the event

◆ UI_WidgetCommonInit()

void UI_WidgetCommonInit ( struct DataNode *  pInNode,
struct UIWidget *  outWidget
)

Init common attributes that all widgets can have.

  • "the base class constructor"
    Parameters
    pInNode
    outWidget
