XMLUIGameLayer.h File Reference

#include <libxml/tree.h>
#include <stdbool.h>
#include "HandleDefs.h"
#include "DynArray.h"
#include "Widget.h"
#include "DrawContext.h"
#include "TimerPool.h"
#include "InputContext.h"

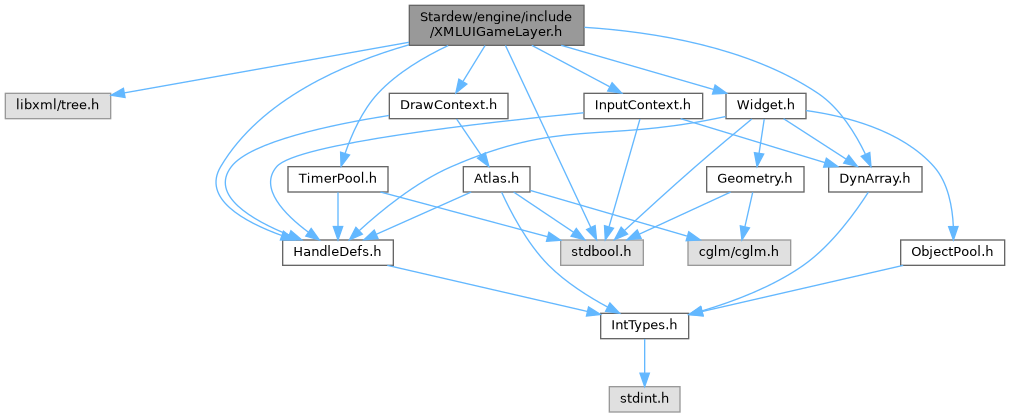

Include dependency graph for XMLUIGameLayer.h:

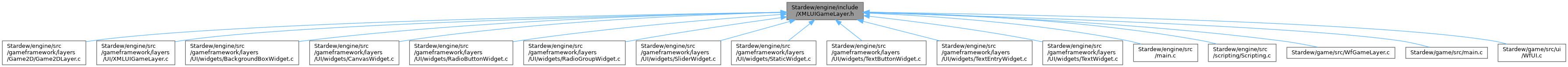

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	XMLUIGameLayerOptions
struct	WidgetChildrenChangeRequest
	its a "request" because if an ancenstor of the requesting widget also requests then the request is overruled More...
struct	XMLUIData

Macros
#define	XML_UI_MAX_PATH   256
#define	MAX_FOCUSED_WIDGETS   16

Typedefs
typedef HWidget(*	AddChildFn) (HWidget hParent, struct DataNode *pDataNode, struct XMLUIData *pUILayerData)
	Function pointer typedef for adding a new widget, described by pDataNode as a child of hParent should return a handle to the created widget.
typedef struct XMLUIData	XMLUIData

Functions
void	XMLUIGameLayer_Get (struct GameFrameworkLayer *pLayer, struct XMLUIGameLayerOptions *pOptions)
	Get and possibly load (if bLoadImmediately) a ui layer defined by xml.
void	XMLUI_PushGameFrameworkLayer (const char *xmlPath)

Macro Definition Documentation

MAX_FOCUSED_WIDGETS

#define MAX_FOCUSED_WIDGETS   16

XML_UI_MAX_PATH

#define XML_UI_MAX_PATH   256

Typedef Documentation

AddChildFn

typedef HWidget(* AddChildFn) (HWidget hParent, struct DataNode *pDataNode, struct XMLUIData *pUILayerData)

Function pointer typedef for adding a new widget, described by pDataNode as a child of hParent should return a handle to the created widget.

XMLUIData

typedef struct XMLUIData XMLUIData

Function Documentation

XMLUI_PushGameFrameworkLayer()

void XMLUI_PushGameFrameworkLayer

(

const char *

xmlPath

)

XMLUIGameLayer_Get()

void XMLUIGameLayer_Get	(	struct GameFrameworkLayer *	pLayer,
		struct XMLUIGameLayerOptions *	pOptions
	)

Get and possibly load (if bLoadImmediately) a ui layer defined by xml.

Parameters

pLayer	(Out) layer to turn into an xml ui layer
pOptions	options for creation
